Product Description
The UFO LED High Bay lights are suitable for indoor and outdoor commercial applications such as basketball courts, warehouses and workshop areas.
Product Features
ü Full powder coated Aluminum housing
ü Long operating life and performance
ü Uses 150lm/w SMD LED’s
ü Taiwan MeanWell LED Driver
ü 70% lumen maintenance at>50000hrs; predicated life of more than 100,000hrs
ü 0.6M standard cable
ü 3 installation way: Tube, Hook, Frame
ü 5 year Warranty
Model No. |
FLA-SH100W V20 |
FLA-SH150W V20 |
FLA-SH200W V20 |
Power |
100W |
150W |
200W |
Lumens |
14000LM |
21000LM |
28000LM |
Dimensions |
Φ278*H170.9mm |
φ328xH178.5mm |
Φ388*H201.5mm |
Input Voltage |
AC85-240V 50/60Hz |
||
Warranty |
5 Years |
Product Data Sheet
Model No. |
FLA-SH150W V20 |
Power |
150W |
Replace Metal Halide |
400W |
Input Voltage |
AC180-240V, 50/60Hz |
Light Source |
High Power SMD LED |
LED Driver |
TAIWAN MeanWell |
Color Temperature |
2700-6500K |
CRI |
>80Ra |
Lumens |
21000LM |
Light Efficiency |
140LM/W |
Power Factor |
>0.99 |
Hotal Harmonic Distortion |
≤10% |
Lens |
PC Clear |
Beam Angle |
60°, 90°, 120° |
Key materials |
Aluminum Alloy with painting |
Product dimension |
φ328xH178.5mm |
Body Color |
Black |
IP Rate |
IP65 |
Operating Temperature |
-25℃-45℃ |
Warranty |
5 Years |
Certificate |
CE RoHs SAA C-TICK |
Piece/Carton |
1 |
Packing Size |
380*380*190MM |
Gross Weight |
3.5 KG/CTN |

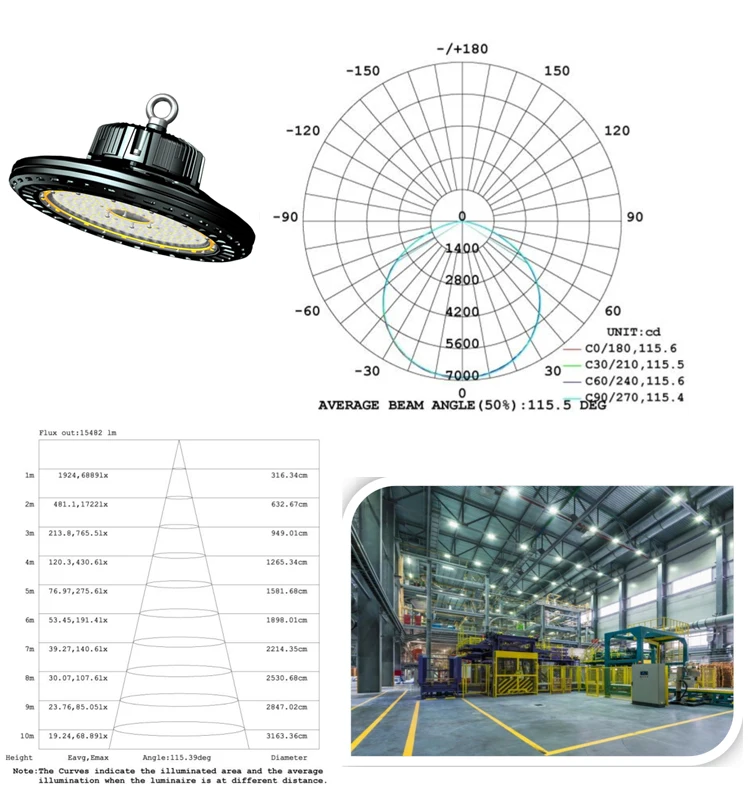

Polar Curve Diagram, Luminance Cone Diagram
Packing Information
1PC/CTN Samples packing:
Net Weight: 3kg
Single carton packaging: 38x38x19cm,
G.W/CTN: 3.5kg
Pallet packing:
96PCS/Pallet
Volume 100x120x190cm,
Net Weight 300 kg
Gross Weight 350 kg
20 FT container:
10 Plastic pallets
960 PCS /20FT Container
Net weight: 3 tons
Gross weight: 3.5 tons
