Product Description

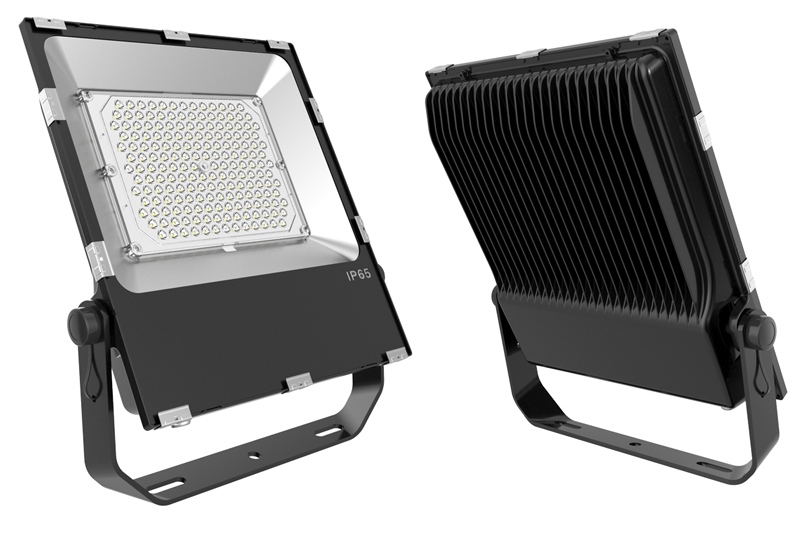

This series led flood lights are slim streamline design, this ultrathin design can save the shipping cost a lot and ensure very convenient installation. Super bright high light output >120lm/w, IP65 waterproof and anti-corrosive aluminum housing, an idea replacements for existing high pressure sodium, metal halide or halogen lighting.
Model No. | LS-FLTG3B-10W | LS-FLTG3B-20W | LS-TG3B-30W | LS-FLTG3B-50W |
Power | 10W | 20W | 30W | 50W |
Lumens | 1200LM | 2500LM | 3600LM | 5800LM |
Dimensions | L166*W136*H32mm | L216.5*W173*H40mm | L226.5*W188*H40mm | L310.5*W240*H50mm |
Input Voltage | AC85-240V | |||
Warranty | 3 Years |
Model No. | LS-FLTG3B-80W | LS-TG3B-100W | LS-FLTG3B-150W | LS-TG3B-200W |
Power | 80W | 100W | 150W | 200W |
Lumens | 9600LM | 12000LM | 18000LM | 24000LM |
Dimensions | L354.5*W266*H55mm | L402.5*W316*H60mm | L430*W350*H60mm | L470.5*W380*H60mm |
Input Voltage | AC85-240V | |||
Warranty | 5 Years |
Product Features
Product Technical data sheet
Model No. |
LS-TG3B-150W |
Power |
150W |
Lumens of 3000K |
16000LM |
Lumens of 4000K |
16500LM |
Lumensof 5000K |
17250LM |
Light Efficiency |
110-130LM/W |
Input Voltage |
AC85-240V |
Light Source |
3030 LED |
LED Chip |
PHILIPS/SEOUL/CREE |
Color Temperature |
2700-6500K |
Other Color |
R, G, B, Y ect available |
CRI |
>80Ra |
Power Factor |
0.95 |
Hotal Harmonic Distortion |
≤0.15 |
Lens |
Tempered Glass |
Beam Angle |
25°, 60°, 120° |
Key materials |
Alluminum Alloy |
Body Color |
Black |
IP Rate |
IP65 |
Appliance Class |
Class I |
Energy Saving |
A+ |
Operating Temperature |
-20℃-45℃ |
Warranty |
3 Years |
LED Life |
>50000hrs |
Cable information |
0.3M Naked Cable with 3*0.75 or 1M 1*1.0H05RN-F Rubber Cable available |
Installation |
Wall/Ceiling Mounting, Spike |
Certificate |
CE, RoHs, SAA |
Packing
Item No. |
LS-FLTG3B-150W |
Net Weight |
5.5kg |
Inner Package Size |
510x430x135mm |
QTY/Carton |
1PCS |
Carton Size |
510x430x135mm |
Cross Weight/Carton |
5.8kg |
volume |
0.030m³ |
Applications
Factory, warehouse, toll station, gas station, large supermarket, exhibition hall, gymnasium, hall, meeting rooms, shopping malls and other lighting
Company Profile
Our R&D Team specializes in LED Lighting more than 15 Years, the sales team specializes in LED Lighting more than 10 years.
Strictly Taiwanese Management
China Made Cost
Product Ability:
LED High Bay: 20,000PCS/Month
LED Flood Light: 50,000PCS/Month
LED Track Light: 30,000PCS/Month
LED Tube: 100,000PCS/Month
LED Downlight: 50,000PCS/Month
We can customize as customer's requirement.For more information, please contact us any time, where there are professional service for you.
