Slim LED Flood Light 30W
This series led flood lights are slim streamline design, this ultrathin design can save the shipping cost a lot and ensure very convenient installation. Super bright high light output >120lm/w, IP65 waterproof and anti-corrosive aluminum housing, an idea replacements for existing high pressure sodium, metal halide or halogen lighting.
- Super bright >120LM/W
- 25°, 60°, 120° beam angle are available
- Innovation G type button technology, anti glass separate from lamp body, ensure products safe and stable
- Excellent appearance with no screws fixed, beautiful and easy to install more simple
- Slim streamline housing design
| Model No. | LS-FLTG3B-10W | LS-FLTG3B-20W | LS-TG3B-30W | LS-FLTG3B-50W |
| Power | 10W | 20W | 30W | 50W |
| Lumens | 1200LM | 2500LM | 3600LM | 5800LM |
| Dimensions | L166*W136*H32mm | L216.5*W173*H40mm | L226.5*W188*H40mm | L310.5*W240*H50mm |
| Input Voltage | AC85-240V | |||
| Warranty | 3 Years | |||
| Model No. | LS-FLTG3B-80W | LS-TG3B-100W | LS-FLTG3B-150W | LS-TG3B-200W |
| Power | 80W | 100W | 150W | 200W |
| Lumens | 9600LM | 12000LM | 18000LM | 24000LM |

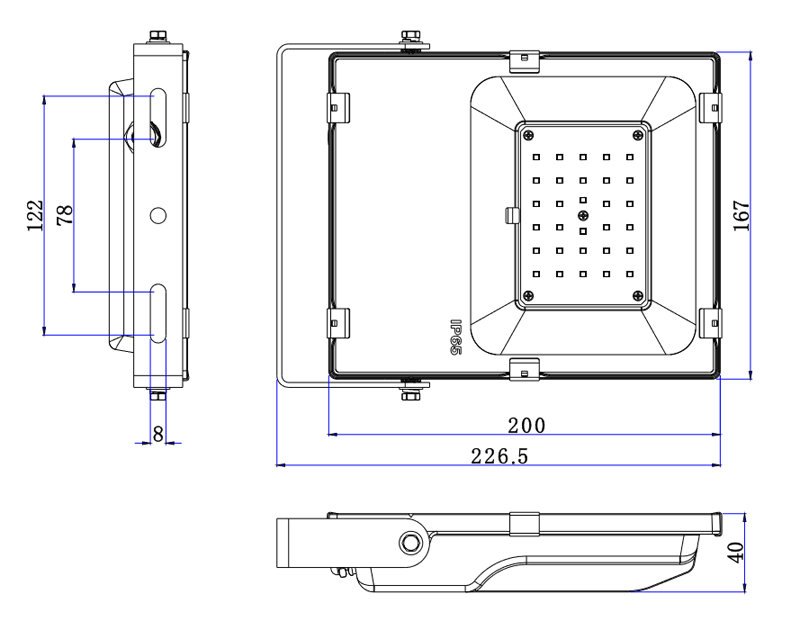

| Dimensions | L354.5*W266*H55mm | L402.5*W316*H60mm | L430*W350*H60mm | L470.5*W380*H60mm |
| Input Voltage | AC85-240V | |||
| Warranty | 5 Years | |||
Product Specification
| Model No. | LS-TG3B-30W |
| Power | 30W |
| Lumens of 3000K | 3420LM |
| Lumens of 4000K | 3600LM |
| Lumensof 5000K | 3780LM |
| Light Efficiency | 110-130LM/W |
| Input Voltage | AC85-240V |
| Light Source | 3030 LED |
| LED Chip | PHILIPS/SEOUL/CREE |
| Color Temperature | 2700-6500K |
| Other Color | R, G, B, Y ect available |
| CRI | >80Ra |
| Power Factor | 0.95 |
| Hotal Harmonic Distortion | ≦0.15 |
| Lens | Tempered Glass |
| Beam Angle | 120° |
| Key materials | Alluminum Alloy |
| Body Color | Black |
| IP Rate | IP65 |
| Appliance Class | Class I |
| Energy Saving | A+ |
| Operating Temperature | -20℃-45℃ |
| Warranty | 3 Years |
| LED Life | >50000hrs |
| Installation | Wall/Ceiling Mounting, Spike |
| Certificate | CE, RoHs, SAA |
Application

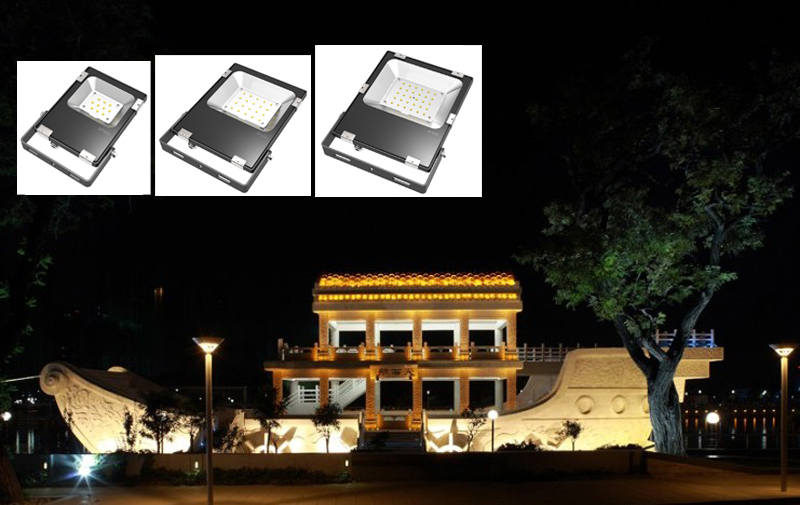

It is widely used in indoor and outdoor lighting such as shopping malls, exhibition halls, parking lots, playgrounds, gym, billboards, parks, sculptures, green lighting of national projects, building facades, public corridors, stairways etc.
