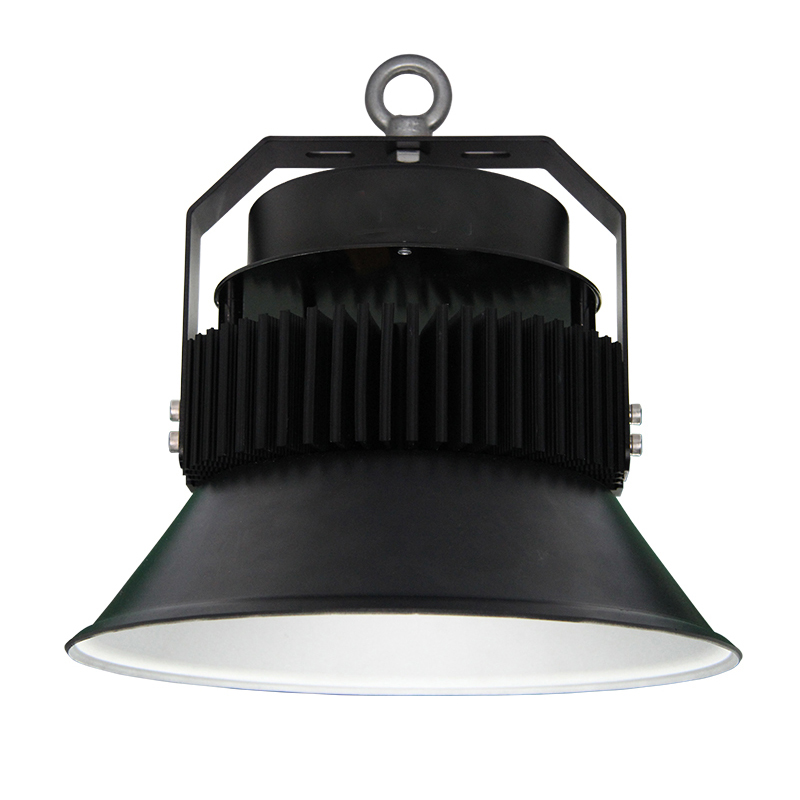

IP54 indoor led high bay light 100W



Product Description



• The classic high bay 16A series has been launching since 2012 and been preferring and recognizing by customers and markets for its stable quality, attractive profile and reasonable cost.
• 16A series high bay been designed with well improved higher luminous efficiency, softer light. And integrated modular close design matching with one step installation housing improved us with more comfortable and economic experience.

Model No.	FLA-SH80W V16A	FLA-SH100W V16A	FLA-SH150W V16A	FLA-SH200W V16A
Power	80W	100W	150W	200W
Lumens	9600LM	12000LM	18000LM	24000LM
Dimensions	Φ305*H290mm	Φ305*H290mm	Φ305*H335mm	Φ305*H385mm
Input Voltage	AC85-240V 50/60Hz
Warranty	5 Years





16A series Features





Product data sheet



Model No.	FLA-SH100W V16A
Power	100W
Input Voltage	AC100-240V, 50/60HZ
Light Source	Nichia
Self-Develop LED Driver	Optional
MeanWell LED Driver	Optional
Color Temperature	2700-7000K
CRI	>80Ra
Lumens	11000LM
Light Efficiency	>110LM/W
Power Factor	>0.94-0.99
Hotal Harmonic Distortion	≤0.2
Lens	PC Frosted
Black Reflector	110°
Beam Angle	90°
Product Dimension(A*B)	Φ305*H290mm
Key materials	Alluminum
Body Color	Black
IP Rate	IP54 indoor use
Operating Temperature	-25℃-45℃
Installation method	Hanging
Warranty	5 Years
LED Life	50000hrs
Certificates	CE, RoHs, SAA
Piece/Carton	1
Packing Size	330*330*340MM
Gross Weight	5.5KG



Applications



This series LED High Bay lights are suitable for indoor use such as basketball courts, badminton court, baseball hall, church, temple, production development center, logistics warehouses, workshop areas and so on.







Polar Curve Diagram and Packing Information







Company Profile



Our R&D Team specializes in LED Lighting more than 15 Years, the sales team specializes in LED Lighting more than 10 years.

Strictly Taiwanese Management
China Made Cost



Product Ability:
LED High Bay: 20,000PCS/Month
LED Flood Light: 50,000PCS/Month
LED Track Light: 30,000PCS/Month
LED Tube: 100,000PCS/Month
LED Downlight: 50,000PCS/Month

We can customize as customer's requirement.For more information, please contact us any time, where there are professional service for you.
